Patchwork

Module: Design · Category: LevelDesign · Tool ID: Patchwork

The missing source-control layer for Unreal levels. Save named snapshots of every reflected UPROPERTY on every actor and component in the level, diff two snapshots property-by-property in a tree view, then cherry-pick which changes to restore. Solves the “two artists editing the same level” conflict problem that traditional source-control (Git, Perforce) handles badly because UE’s .umap is binary.

ℹ️ Planned release: Free standalone Fab plugin. Currently registered as Patchwork in the EQLabs Hub. The class is internally FSceneSnapshotManager until the standalone extraction renames it.

Patchwork open with several saved snapshots in the list, diff tree visible showing actor / component / property hierarchy with cherry-pick checkboxes.

A level snapshotted, three actors moved, turned and scaled, compared against the snapshot — 5 property changes — and restored.

When to use it

• “Save before risky change”: snapshot before a big lighting or layout change
• Two artists collaborating on the same level: diff their states and merge
• Pre-commit safety: snapshot before committing to source control as a fallback
• Iteration: save several variations and compare

What it isn’t for

• Don’t use this as your primary source control. It’s a layer on top of Git / Perforce, not a replacement.
• Don’t expect this to handle level loads / saves. It captures actor state, not the level asset itself.
• Don’t expect SCC integration in V1. Phase C+D will add Git hooks and 3-way merge.

Opening the tool

1. Open the EQLabs Hub and search for Patchwork (or browse to Design → LevelDesign).
2. Click the tool card.

Interface tour

Section	What it does
Save Snapshot	Captures every reflected UPROPERTY across every actor + component
Snapshot list	Per-snapshot row: name, timestamp, author, tag, screenshot thumbnail
Compare Snapshot	Diffs the selected snapshot against current state
Restore Snapshot	Restores every property in the snapshot
Restore Checked	Restores only the cherry-picked properties from the diff tree
Delete Snapshot	Deletes the snapshot file
Diff tree	Hierarchical view of every change

Snapshot capture

When you save a snapshot, every actor in the level is walked. For each actor, every reflected UPROPERTY is exported via FProperty::ExportText_InContainer. Components are walked recursively. Only properties that differ from the class default (CDO) are captured — keeps JSON size reasonable.

Snapshot metadata (Phase B)

Each snapshot stores:

• Name. Your label.
• Description. Free-text.
• Tag. Preset tags (Before Lighting Pass, Pre-Commit, Custom...) or your own.
• Author. Git config user.name / p4 info / OS username.
• Timestamp. Local ISO-8601.
• Commit SHA / Branch. Auto-captured from git.
• Screenshot. Viewport thumbnail captured at snapshot time.

Diff tree

Compare any two snapshots (or one snapshot vs current state). The tree shows:

Node kind	Meaning
ActorAdded	New actor present in Current, missing from Saved
ActorRemoved	Actor in Saved, deleted in Current
ActorModified	Container for property changes within an actor
ComponentAdded / Removed / Modified	Same as Actor, for components
PropertyChanged	Leaf node — one property’s value differs
PropertyRevertedToDefault	Was captured in Saved (non-default), now matches CDO
PropertyDivergedFromDefault	Was matching CDO in Saved, now non-default

Each leaf has a cherry-pick checkbox. Tri-state propagation means you can check a parent and the whole subtree gets selected. Click Restore Checked to apply only the selected leaves.

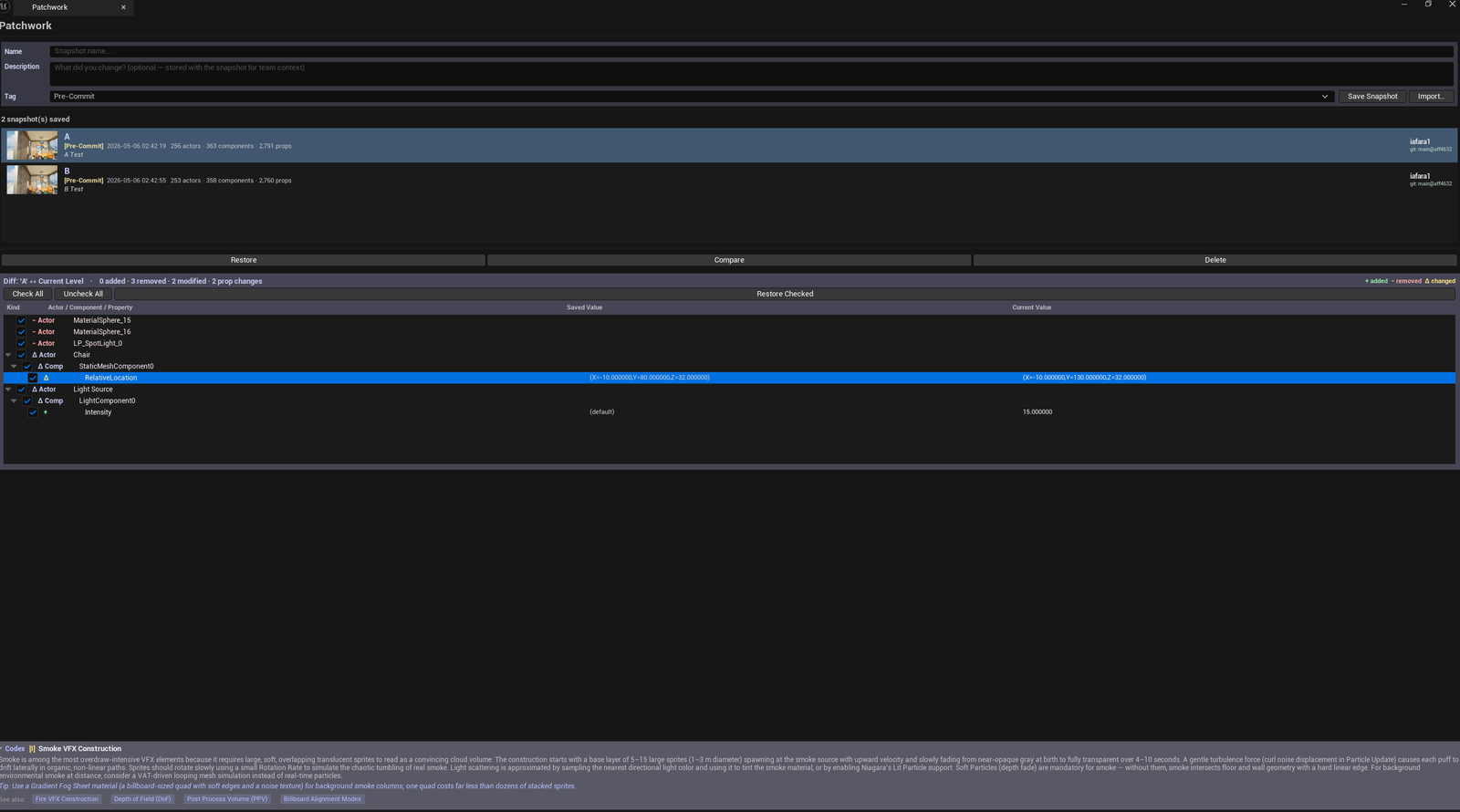

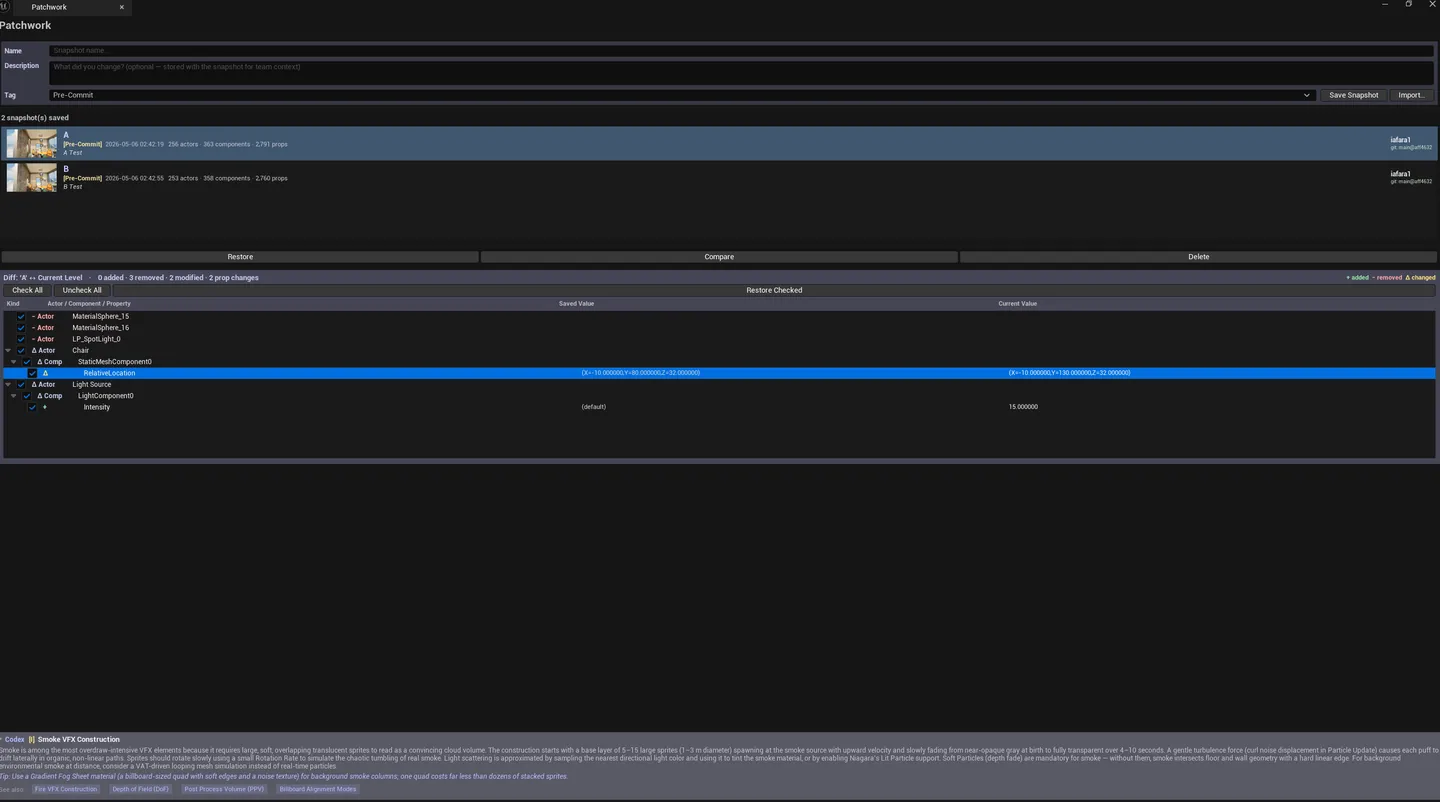

Diff tree expanded, mix of actor / component / property nodes, several leaves checked.

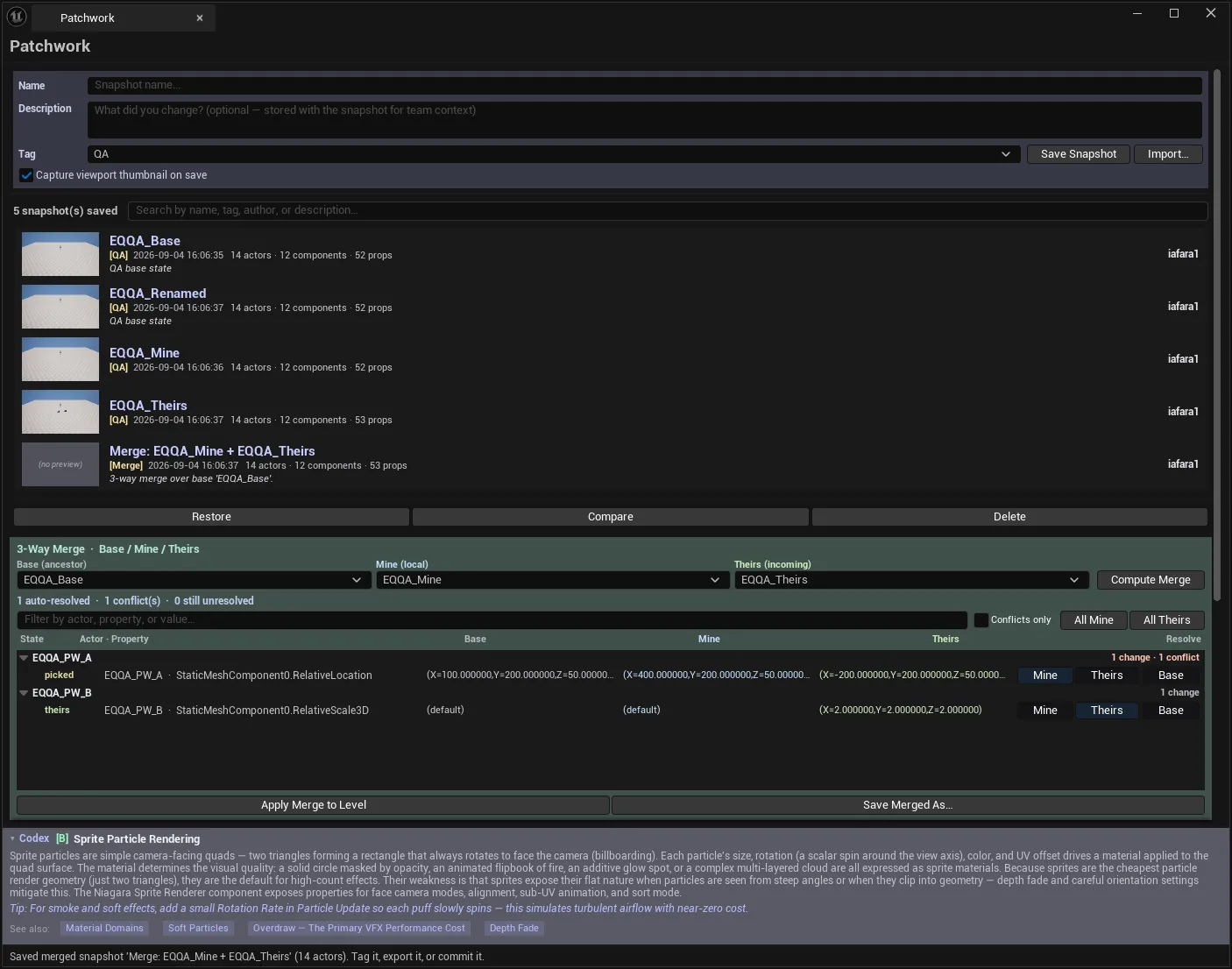

Two scene snapshots compared property by property and merged, with the conflicts resolved.

Workflow

Save a snapshot

1. Click Save Snapshot.
2. Enter a name (e.g., Pre-LightingPass).
3. Optionally fill description / tag.
4. Snapshot is captured — viewport thumbnail saved alongside.

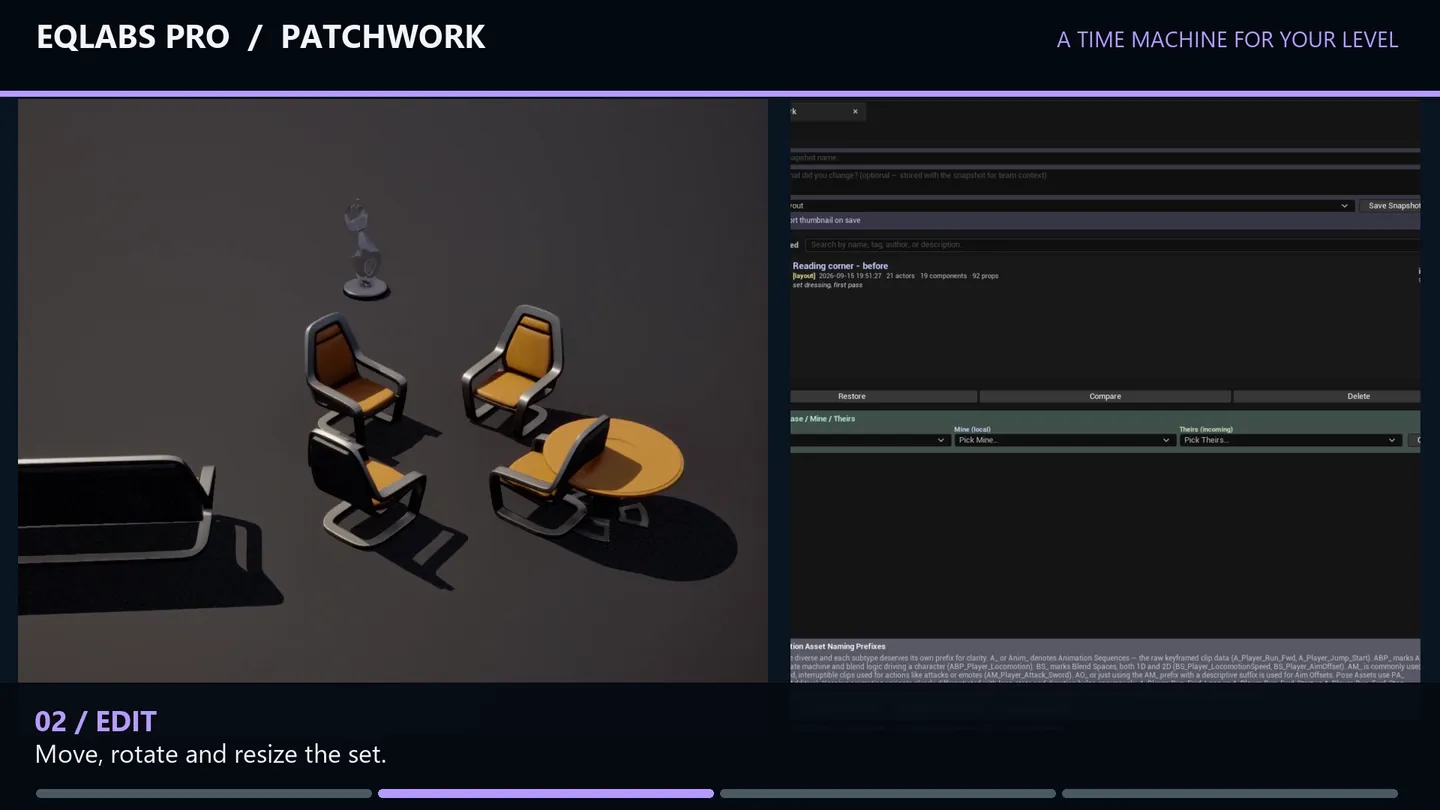

Editing the set after a snapshot: chairs moved, turned and resized.

Compare and restore

1. Select a snapshot in the list.
2. Click Compare Snapshot — diff tree populates.
3. Walk the tree, checking properties you want to restore.
4. Click Restore Checked — only checked properties revert.

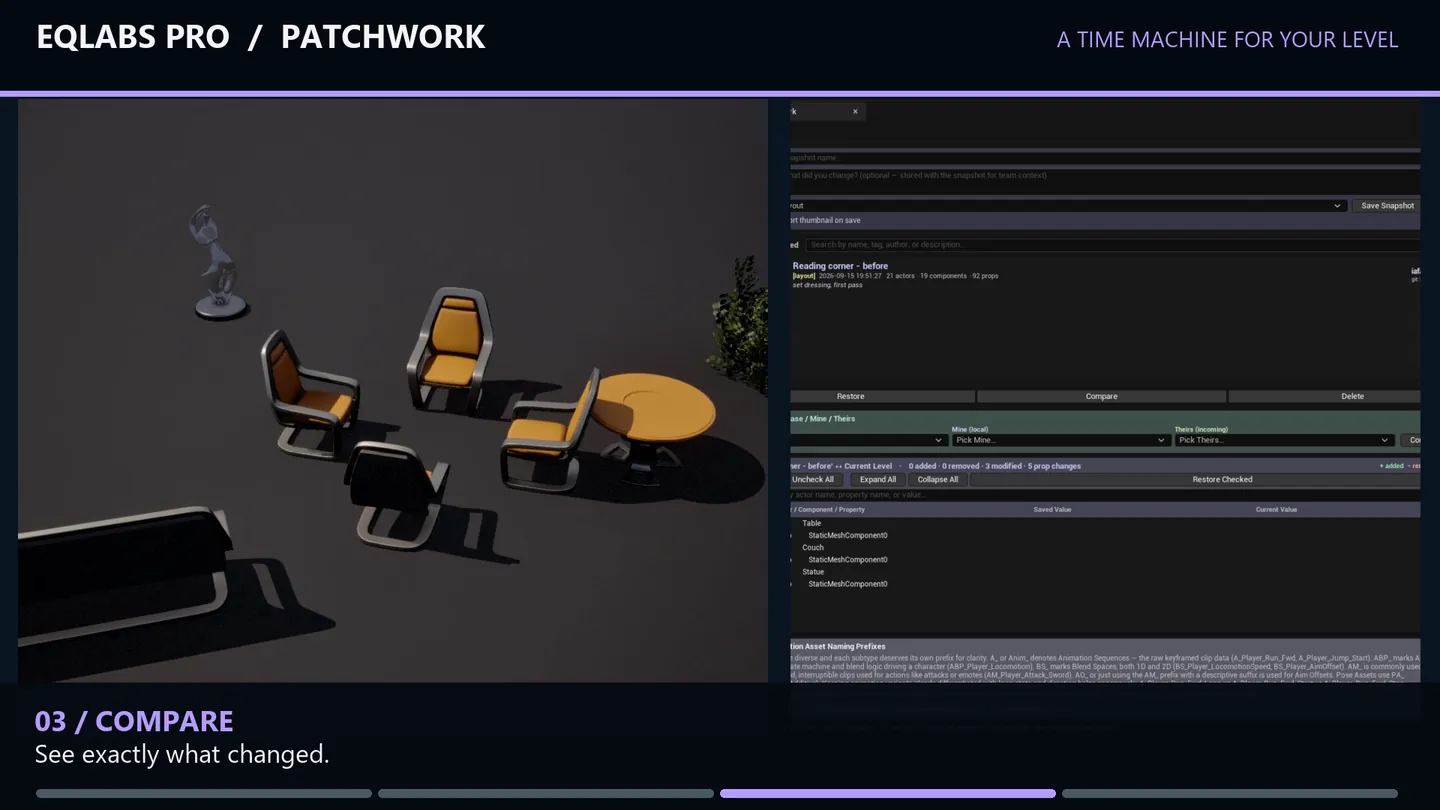

Comparing the level against the snapshot: the diff lists every changed property.

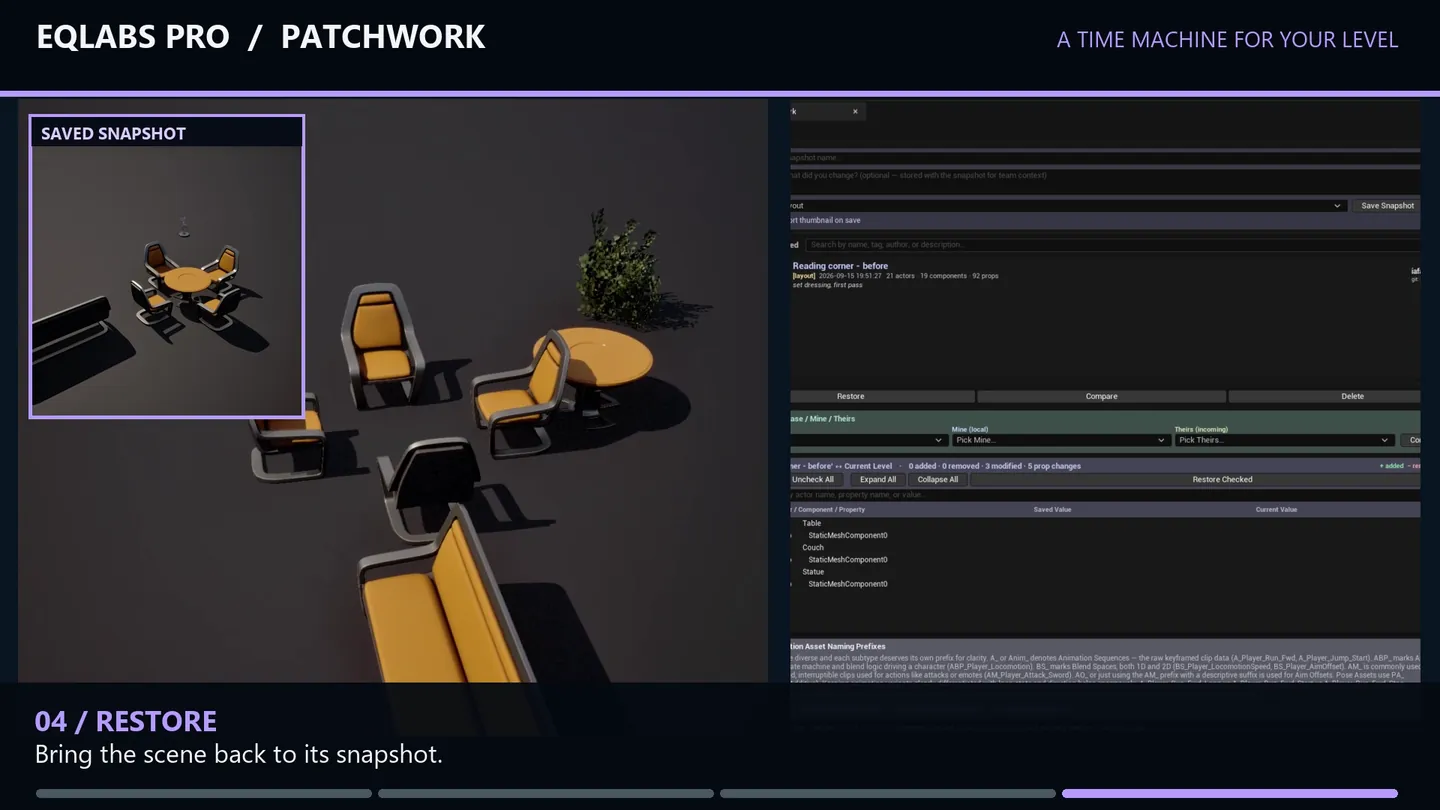

Restoring the scene to the saved snapshot.

Full restore

For “go back exactly to this state”, select the snapshot and click Restore Snapshot — every captured property is restored.

Export / Import / Duplicate

Right-click a snapshot for context-menu actions: Duplicate, Export (saves snapshot file to disk), Delete. Import Snapshot at the top of the list lets you load a snapshot file from another machine / project.

Settings reference

Snapshots persist to [Project]/Saved/EQLabs/Patchwork/snapshots.json. Thumbnails persist to [Project]/Saved/EQLabs/Patchwork/thumbnails/<snapshot-id>.png.

Output

• JSON snapshot file. Versioned schema, human-readable.
• PNG thumbnail. Per snapshot.
• Level state changes. Restore / Restore Checked modify actor state in-place.
• Undo. Restore is wrapped in ScopedTransaction, but restore-of-restore can interact unpredictably; commit between large restores.

Tips and gotchas

• Patchwork captures in-memory state, not disk state. Save the level afterward to persist.
• Property capture excludes transient / editor-only / internal-use properties. What’s captured is roughly what UE serializes via SaveGame.
• Cherry-pick uses tri-state checkboxes. A parent shows partial when only some children are checked.
• Future plan: Phase C will add a git pre-commit hook that auto-snapshots before each commit
• Future plan: Phase D will add 3-way merge. Diff your changes against another artist’s changes against a shared base.

Related tools

• Project Doctor Suite (Tech module) — broader project-state audit alongside snapshot history
