Tech

The Tech module is the largest in EQLabs — 40 tools covering texture generation, material/asset workflow, debugging, QA, project audit, and runtime performance suites.

40 registered tools.

Texture Generators

• Gradient Ramp Generator

  Generate gradient ramps for toon shading and ramp-based material effects.

  TextureGenerators
• Noise Texture Generator

  14 noise + pattern types — Perlin, Simplex, Worley, Domain-Warped FBM, and more.

  TextureGenerators

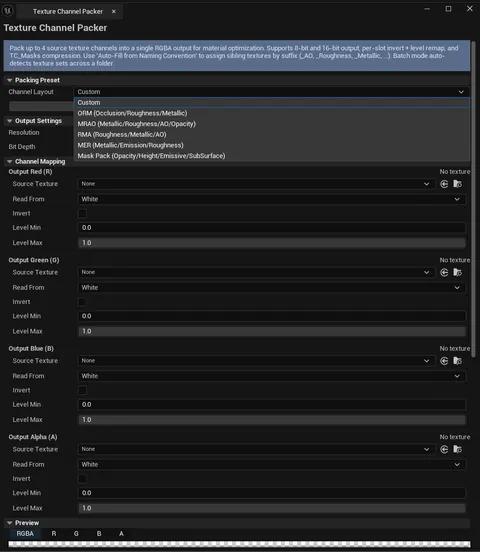

• Texture Channel Packer

  Pack 4 textures' channels into RGBA with ORM presets and batch mode.

  TextureGenerators

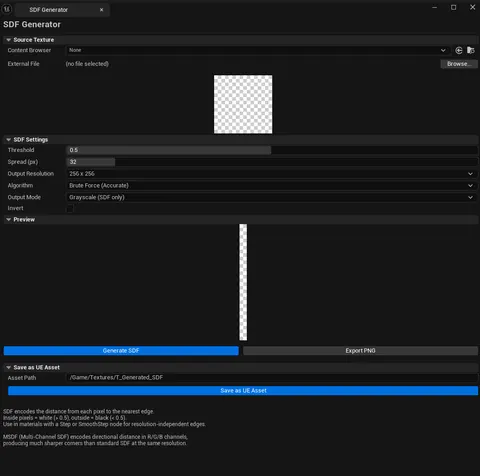

• SDF Generator

  Generate SDF / MSDF textures from source images.

  TextureGenerators
• VAT Management Suite

  Create, import, and manage Vertex Animation Textures.

  TextureGenerators

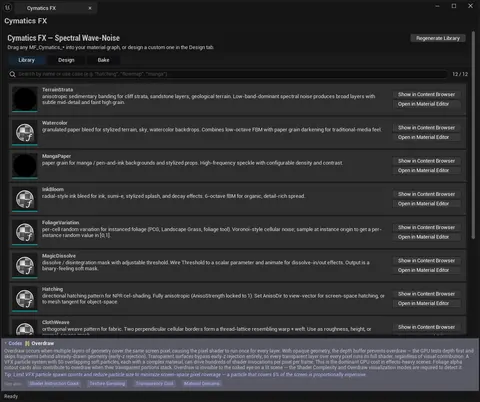

• Cymatics FX

  Spectrally-controlled wave-noise Material Function library: watercolour, manga paper, hatching, dissolve, cloth weave, mist and flowmaps.

  TextureGenerators

Workflow

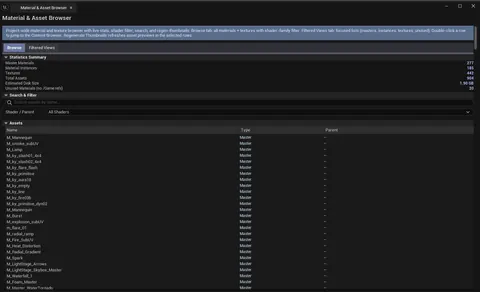

• Material & Asset Browser

  Browse materials/textures with statistics and filtered views.

  Workflow

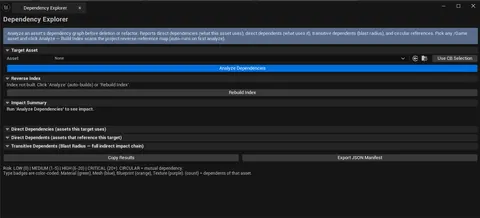

• Dependency Explorer

  Map asset dependencies with blast radius analysis.

  Workflow

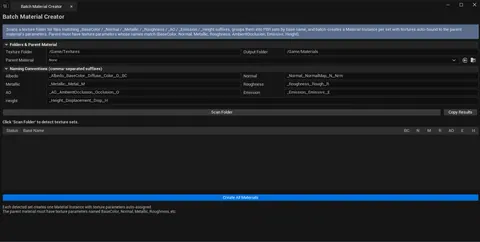

• Batch Material Creator

  Auto-create MIs from texture folders by naming convention.

  Workflow

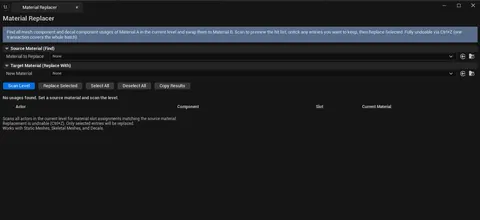

• Material Replacer

  Batch find/replace materials across actors.

  Workflow

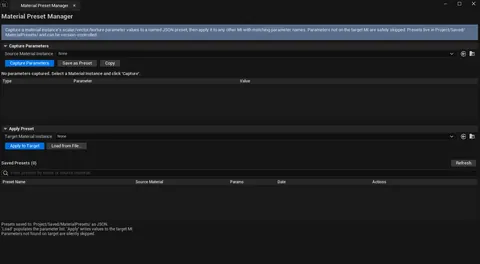

• Material Preset Manager

  Save/load material parameter presets as JSON.

  Workflow

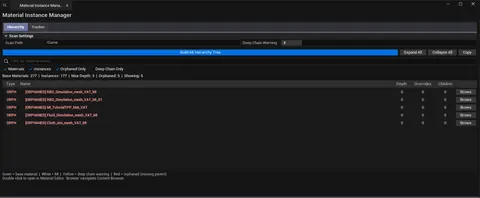

• Material Instance Manager

  MI hierarchy + override tracking.

  Workflow

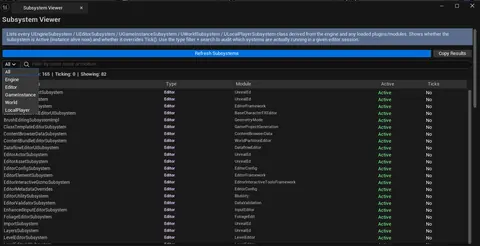

• Subsystem Viewer

  List Engine / Editor / GameInstance / World / LocalPlayer subsystems.

  Workflow

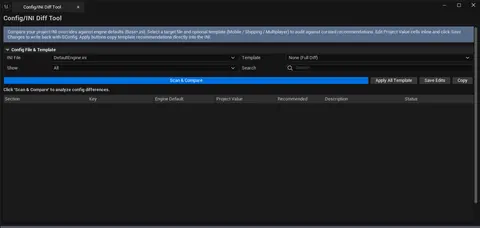

• Config/INI Diff Tool

  Compare project config to engine defaults with templates.

  Workflow
• USD Interchange Repair Kit

  Audit USD/Interchange import results.

  Workflow
• Texture Validation & Color Management

  Scan/validate/fix texture settings.

  Workflow

Debugging

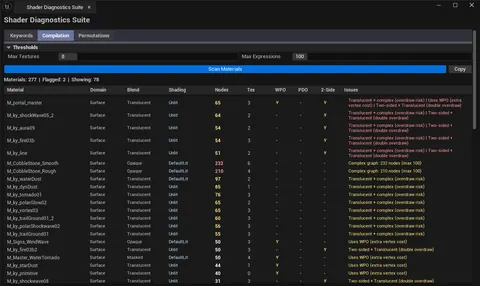

• Shader Diagnostics Suite

  Keywords + compilation + permutations.

  Debugging

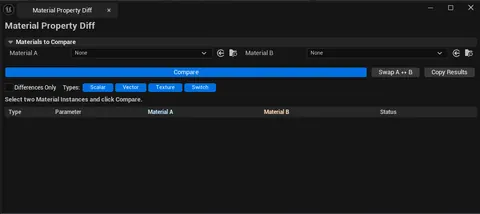

• Material Property Diff

  Side-by-side parameter diff for two MIs.

  Debugging
• Replication Debugger

  Replication audit with bandwidth estimation.

  Debugging

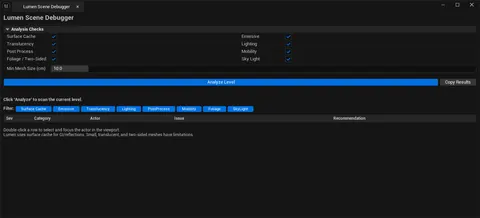

• Lumen Scene Debugger

  Lumen GI / reflection scene analyzer.

  Debugging

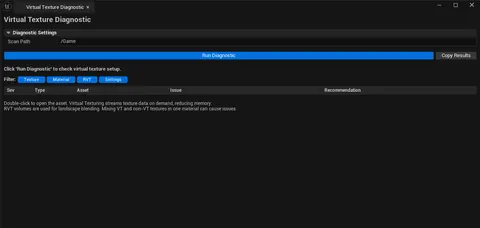

• Virtual Texture Diagnostic

  VT setup audit.

  Debugging

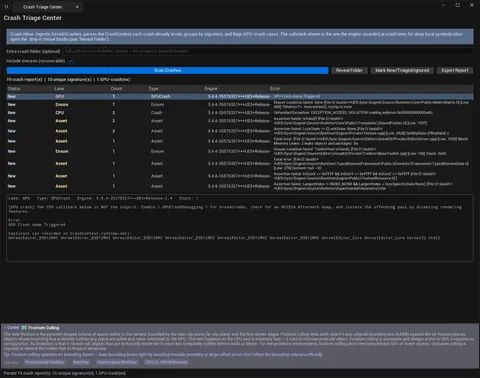

• Crash Triage Center

  In-editor crash inbox: ingests Saved/Crashes, groups by signature, flags GPU crashes, and tracks per-signature triage status.

  Debugging
• LogLens

  Parses a Saved/Logs file, clusters repeated warnings, errors and ensures by an address-insensitive signature, and ranks them by severity then frequency.

  Debugging

QA

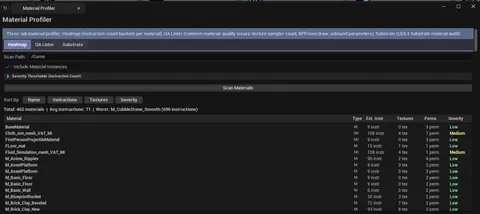

• Material Profiler

  Heatmap + QA linter + Substrate analyzer.

  QA

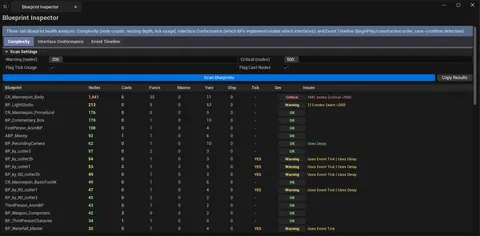

• Blueprint Inspector

  Complexity + interfaces + event timeline.

  QA

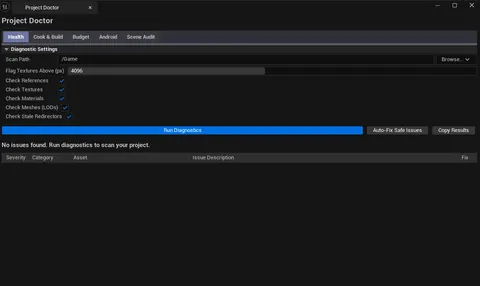

• Project Doctor

  Flagship 5-tab audit: Health / Build / Budget / Android / Scene Audit.

  QA

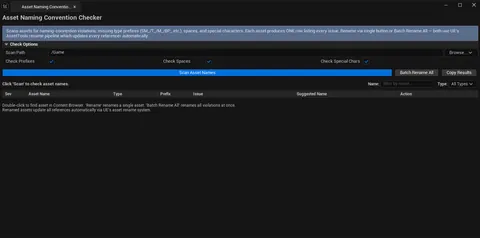

• Asset Naming Convention Checker

  Validate asset names with batch rename.

  QA

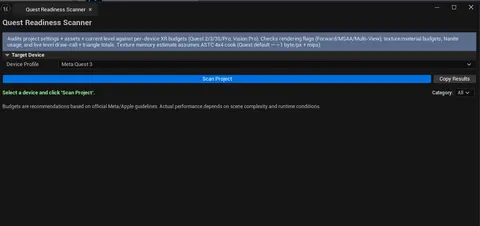

• Quest Readiness Scanner

  Per-device XR readiness for Quest / Vision Pro.

  QA

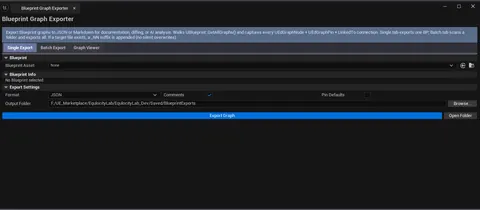

• Blueprint Graph Exporter

  Export Blueprint graphs to JSON / Markdown.

  QA
• Validation Gate Hub

  Aggregates the reports EQLabs auditors already wrote into one pass/fail gate for save, pre-commit or CI.

  QA

Performance

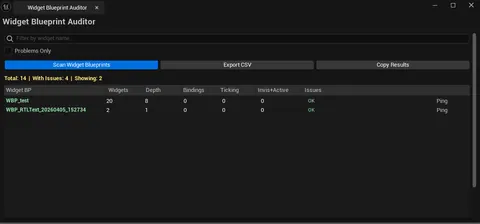

• Widget Blueprint Auditor

  UMG perf audit.

  Performance

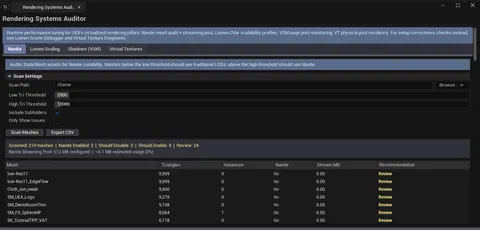

• Rendering Systems Auditor

  Nanite / Lumen / VSM / VT runtime tuning.

  Performance

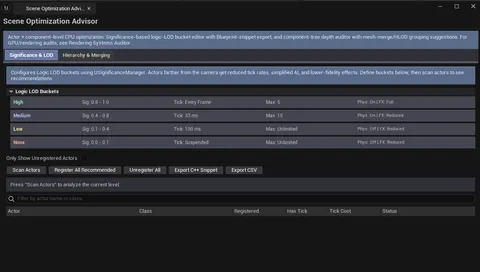

• Scene Optimization Advisor

  Significance LOD + hierarchy flattening.

  Performance

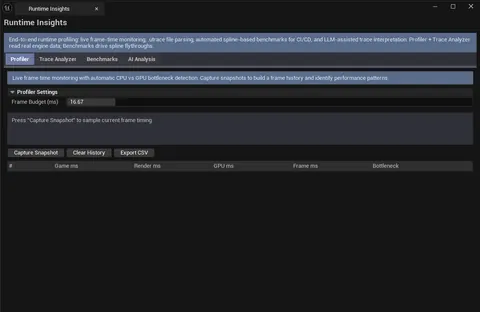

• Runtime Insights

  Profiler + trace analyzer + benchmarks + AI.

  Performance
• Blueprint Tick Auditor

  Scans Blueprint actor classes for the real precondition of per-frame VM cost — an implemented Event Tick with ticking enabled — and ranks the every-frame tickers.

  Performance
• GC Pulse

  Records every garbage collection: real pause duration, objects destroyed, and a live UObject-count-vs-capacity early warning.

  Performance

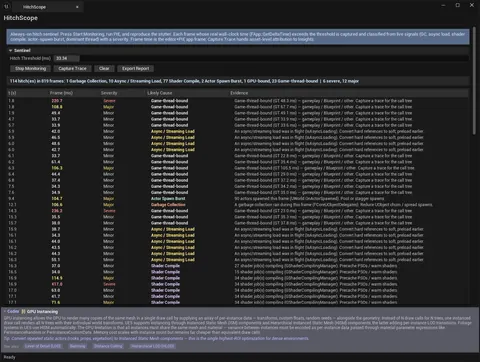

• HitchScope

  Always-on hitch sentinel: samples real per-frame time in PIE and classifies the likely cause of each spike from real engine signals.

  Performance

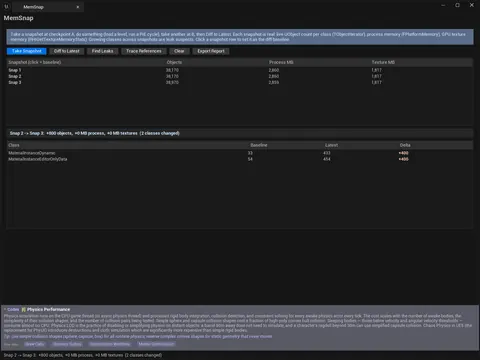

• MemSnap

  One-click memory snapshots and diffs: per-class UObject growth, process memory and GPU texture memory, plus reference-chain tracing.

  Performance

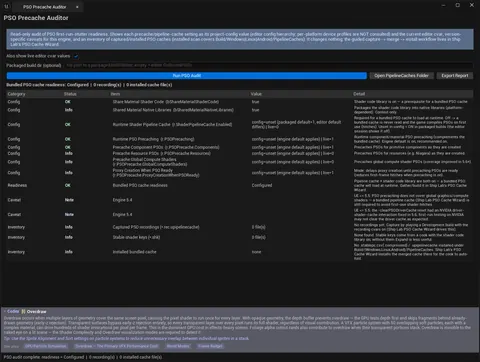

• PSO Precache Auditor

  Read-only audit of PSO precaching and bundled shader-pipeline-cache configuration, engine-version caveats, and the PSO cache file inventory.

  Performance

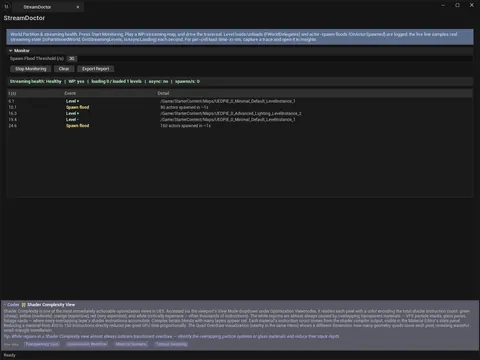

• StreamDoctor

  World Partition and streaming health monitor: records real streaming events during PIE and classifies them into a live health verdict.

  Performance

Tool reference

Tool	Category	Type
Gradient Ramp Generator	TextureGenerators	Single
Noise Texture Generator	TextureGenerators	Single
Texture Channel Packer	TextureGenerators	Single
SDF Generator	TextureGenerators	Single
VAT Management Suite	TextureGenerators	4-tab
Material & Asset Browser	Workflow	2-tab
Dependency Explorer	Workflow	Single
Batch Material Creator	Workflow	Single
Material Replacer	Workflow	Single
Material Preset Manager	Workflow	Single
Material Instance Manager	Workflow	2-tab
Subsystem Viewer	Workflow	Single
Config/INI Diff Tool	Workflow	Single
USD Interchange Repair Kit	Workflow	Single
Texture Validation & Color Mgmt	Workflow	3-tab
Shader Diagnostics Suite	Debugging	3-tab
Material Property Diff	Debugging	Single
Replication Debugger	Debugging	Single
Lumen Scene Debugger	Debugging	Single
Virtual Texture Diagnostic	Debugging	Single
Material Profiler	QA	3-tab
Blueprint Inspector	QA	3-tab
Project Doctor	QA	5-tab
Asset Naming Convention Checker	QA	Single
Quest Readiness Scanner	QA	Single
Blueprint Graph Exporter	QA	3-tab
Widget Blueprint Auditor	Performance	Single
Rendering Systems Auditor	Performance	4-tab
Scene Optimization Advisor	Performance	2-tab
Runtime Insights	Performance	4-tab
